5m Solar Cable Extension Cable With MC4 Connector

Solar Extension Cable Wire MC4 Connector – 5m x 2 – 4mm

Our solar photovoltaic system extension cables are constructed from premium materials that are exceptionally resilient to weather and withstand a range of challenging conditions. Our high-quality connectors feature a tinned copper core, flame retardant properties, resistance to high and low temperatures, UV rays, and corrosion.

*NOTE: MC4 IS NOT CONNECTED TO THE CABLES, COMES SEPERATE.

Features:

• Flame retardant Solar Panel Cable 5m long

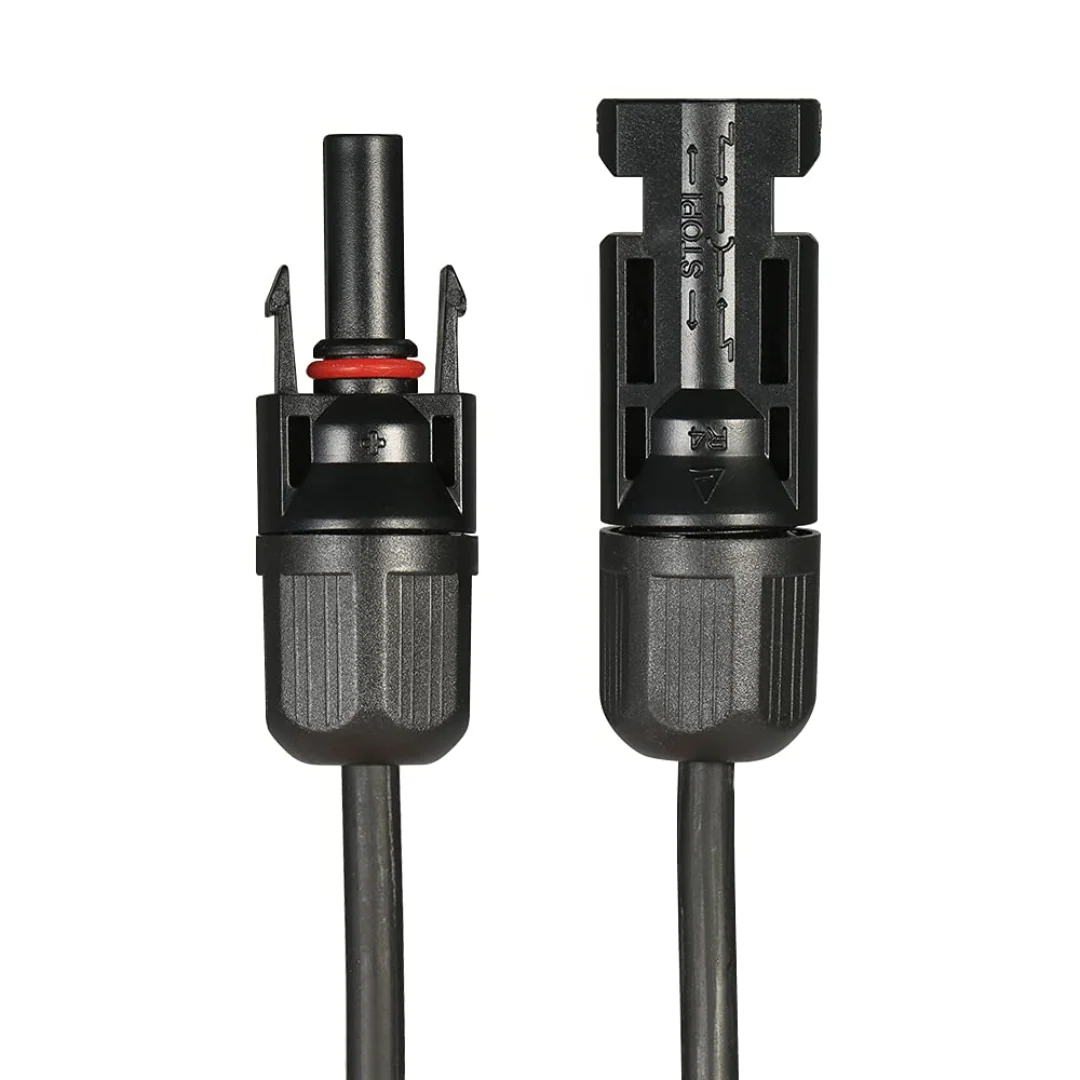

• Two MC4 connectors (male and female)
• High current carrying capacity (55A)
• Red and Black Extension Cable Dust-proof and UV resistant
• High Current Solar Cable Double insulation
• Weatherproof Solar Cable Flame retardant
• 10Awg Solar Cable All-weather adaptability
• Good abrasion resistance
• Excellent softness & stripping performance

Specifications:

• 5M Solar Panel Extension Cable

• Waterproof: Yes
• Weather resistance: UV
• Number of cores: 2
• Sheath Material: PE
• Core material: Copper
• Sheath Thickness: 2.5mm
• Outer diameter of wire: 4mm
• Wire Length: 5m

• Interface Type: DC AC
• Wire Gauge: 10Awg
• Rated voltage: DC: 1.8kv AC U. / U: 0.6 / 1kv
• Rated Current: 55A
• Color: Red & Black

Package Includes:

• 1 × Solar Extension Cable Red 5m
• 1 × Solar Extension Cable Black 5m
• 2 Pair x MC4 Connector
