Barn Door Hardware Rail 1.83m

Barn Door Hardware Black Steel I-Shaped Rollers Track Rail Bypass Sliding Barn Door Hardware Kit 1.83M

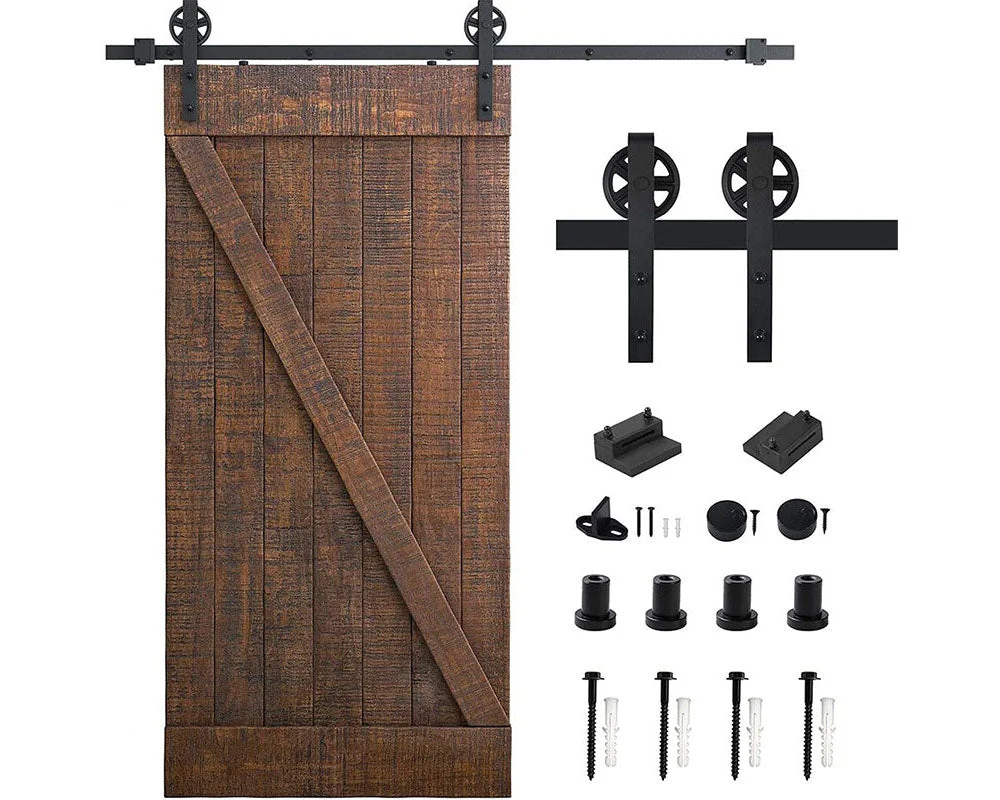

Upgrade your space with our Black Steel I-Shaped Rollers Track Rail Bypass Sliding Barn Door Hardware Kit. Crafted from super-quality raw steel castings with a track thickness of 6mm, this hardware kit offers exceptional carrying capacity, with a maximum load of 330 pounds. Perfect for bypass barn single or double doors, it's easy to install and comes with all the necessary accessories and detailed instructions.

Installation Requirements:

• The distance from the top of the door to the ceiling should be approximately 16cm
• Baseboard thickness should be around 2cm
• Door thickness should be between 4-4.5cm

Accessories:

For Single Door:
Track length = Door width x 2 + 10cm
Track length = Opening width x 2 + 20cm

For Double Door:
Track length = Door width x 4 + 20cm
Track length = Opening width x 2 + 20cm

Installation Tools (to be prepared):

• Impact drill
• Spirit level
• Tape measure
• Socket wrench
• Hammer
• Pencil
• Screwdriver

Reminder:

• This kit includes hardware only, door panels not included. Suitable for single doors.
• The track and wall connectors are pre-fixed and not adjustable.
• Designed for interior use only.

Packaging Contains:

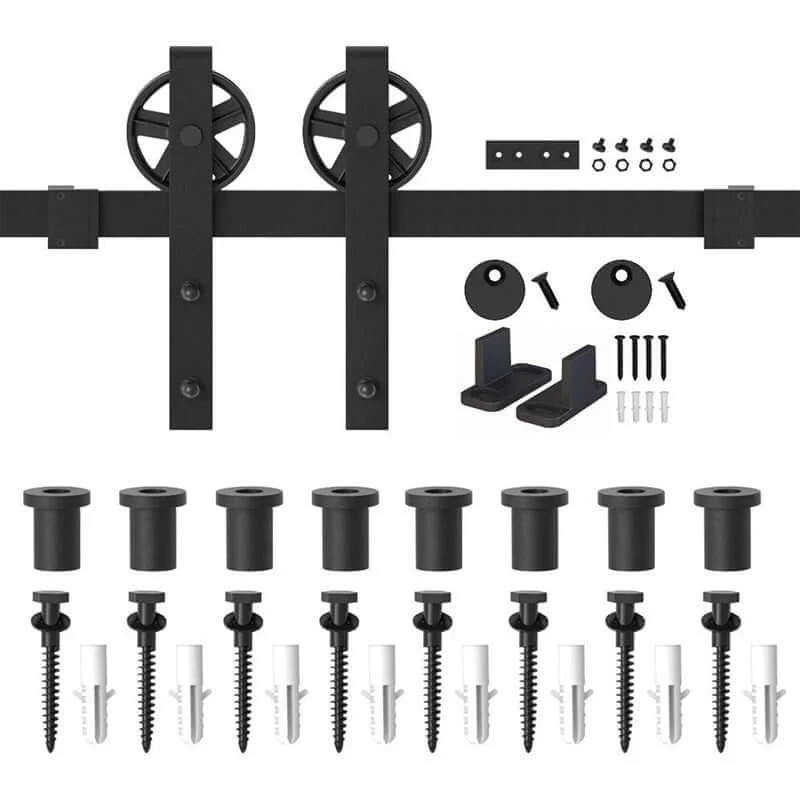

• 1 x Barn Door Hardware Set 1.83M
• 1 x Instruction Manual

* This accessory requires opening the bottom of the barn door (size 20mm x 7mm) in advance.
