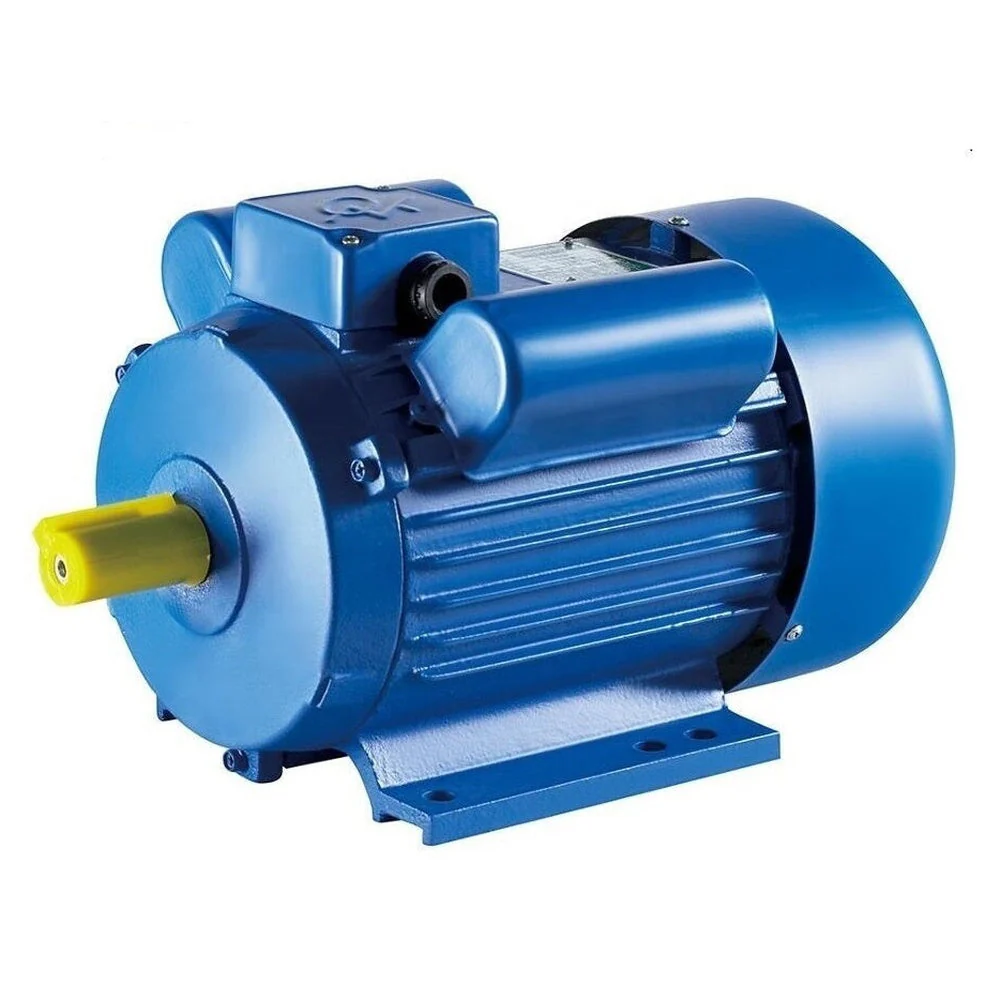

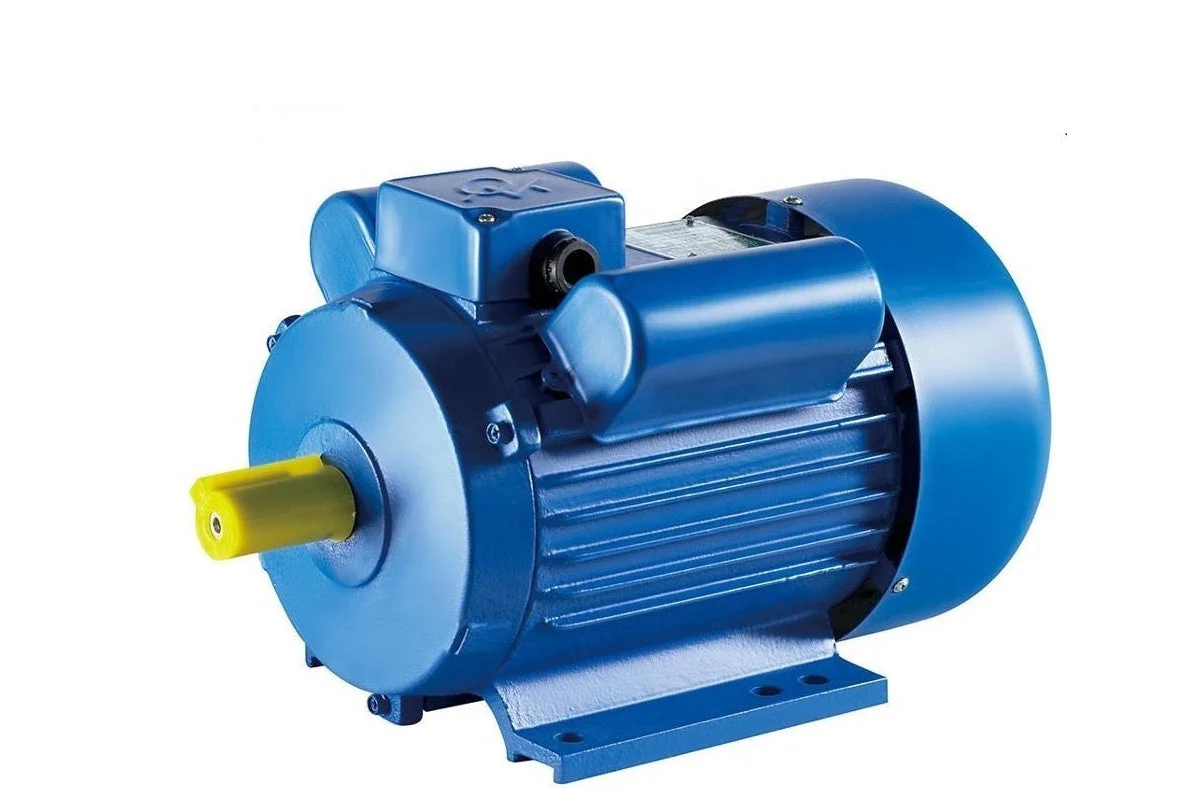

Electric Motor 3HP Single Phase 1400RPM

Brand New Cast Iron Housing Electric Motor
Single-Phase Dual-Capacitor Motor ELECTRIC MOTOR 3.0HP 2.2KW Electric Motor 230V50hz

Horsepower: 3.0HP Electric Motor
Rated power: 2.2kw
Baseplate Size: 152mm W x 174mm L
Standard mountings are front to rear 100-125mm, across 140mm
Protection class: IP44
Insulation class: B
Rotating speed: 1400r/min
Current 13.5A
Shaft size is 24mm
Shaft length is 50mm
Keyway slot: 8mm
Starting Capacitor: 200 uF/250V
Running Capacitor: 50 uF/400V
Overall body size (excluding shaft) 295mm L x 200mm W x 225mm H.
Cast Iron Electric Motor Housing
Electric Motor 3.0HP 2.2KW Electric Motor 230V50hz 1400rpm Electric Motor

These Electric Motors are widely used in air compressors, pumps, fans, refrigerators, medical instruments as well as small machines, etc. especially for the occasion where only single-phase power supply is available.
