MPPT Solar Controller 30A

30A Tracer MPPT Solar Charge Controller

Introducing the 30A Tracer MPPT Solar Charge Controller, a powerhouse of features for your solar power system. This controller combines efficiency, flexibility, and comprehensive protection to ensure optimal performance for your solar setup.

Features:

• Load Control Modes: Choose from manual control, lighting ON/OFF, and light On+Timer for versatile use.
• Efficient MPPT Technology: Achieve efficiency levels of over 99.5% with Advanced Maximum Power Point Tracking.

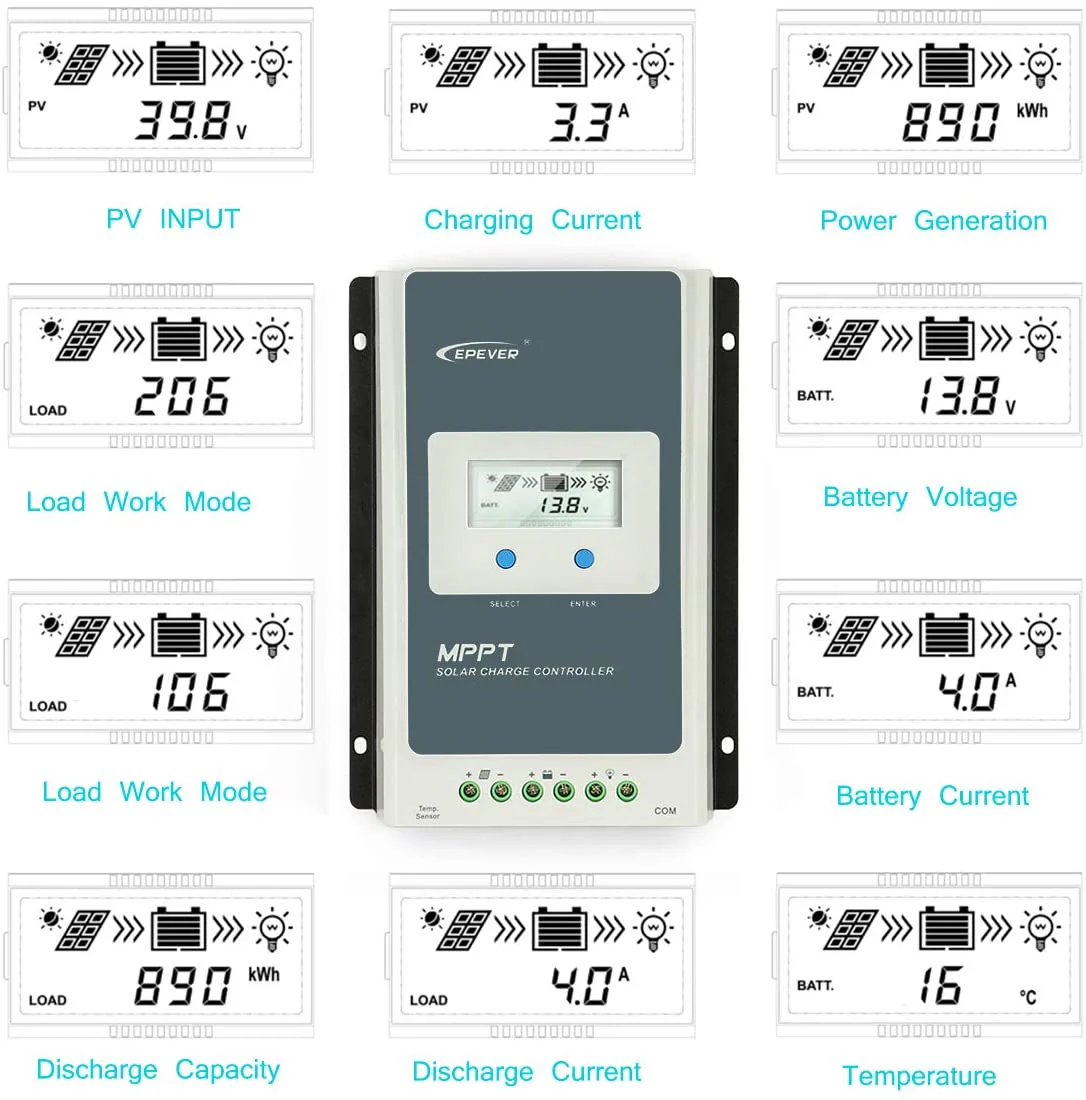

• Dynamic CD Display: Monitor real-time data and working conditions effortlessly.
• PC Monitoring: Seamlessly check data and adjust parameters through PC or external displays.
• Lithium Battery Compatibility: No need for the MT-50 display; choose from three standard battery settings. Enjoy 3-stage charging (Bulk, Boost, Float) with Equalize function.
• Battery Type Settings: Tailor settings for Flooded, Gel, Sealed batteries, or user-defined configurations.

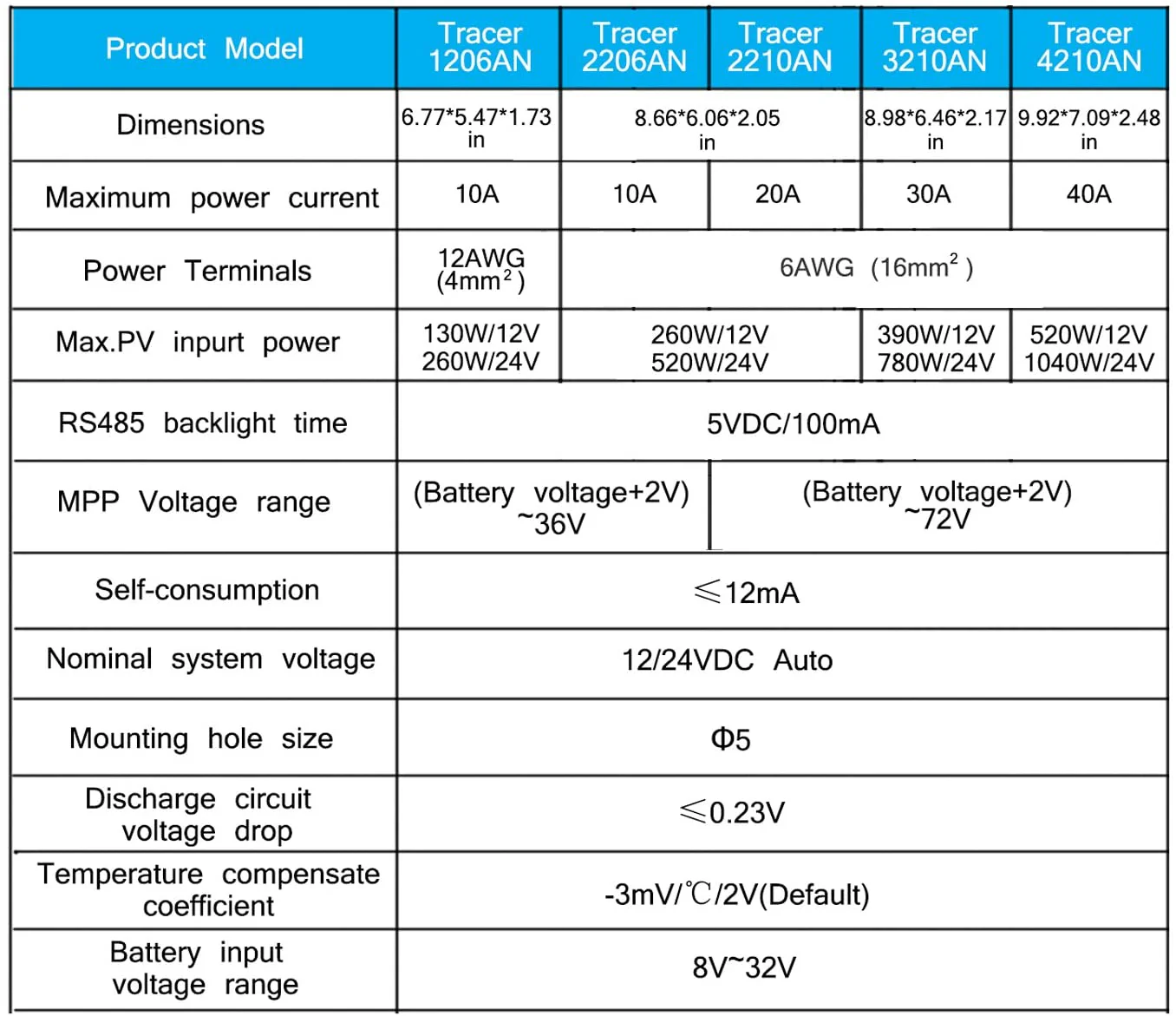

Technical Specifications:

• Rated Charge Current: 30A
• Rated Discharge Current: 30A
• Battery Input Voltage Range: 8-32V
• Max. PV Open Circuit Voltage: 100V
• Max. PV Input Power: 12V/390W, 24V/780W
• Enclosure: IP30

Electronic Protections:

• PV Reverse Polarity Protection
• PV Short Circuit Protection
• PV Overcurrent Alarm Protection
• Load Short Circuit Protection
• Load Overload Protection
• Controller Overheating Protection
• Battery Overvoltage Protection
• Battery Over Discharge Protection

Additional Features:

• Auto-identification and display of controller type, model, and relevant parameter data.
• Large-screen multifunction LCD for comprehensive operational data.
• Real-time energy statistics recording.
• Enhanced communication via RS485 for longer distances.
• Diverse load control modes: manual, light ON/OFF, Light ON+Timer, Time Control.
• Battery type selection: Gel, Sealed, Flooded, and USER type.

Packaging Content:

• 1 x MPPT Tracer 3210AN Solar Charging Controller
• 1 x User Manual

Upgrade your solar system with the 30A Tracer MPPT Solar Charge Controller, combining efficiency, flexibility, and comprehensive protection for optimal performance.
