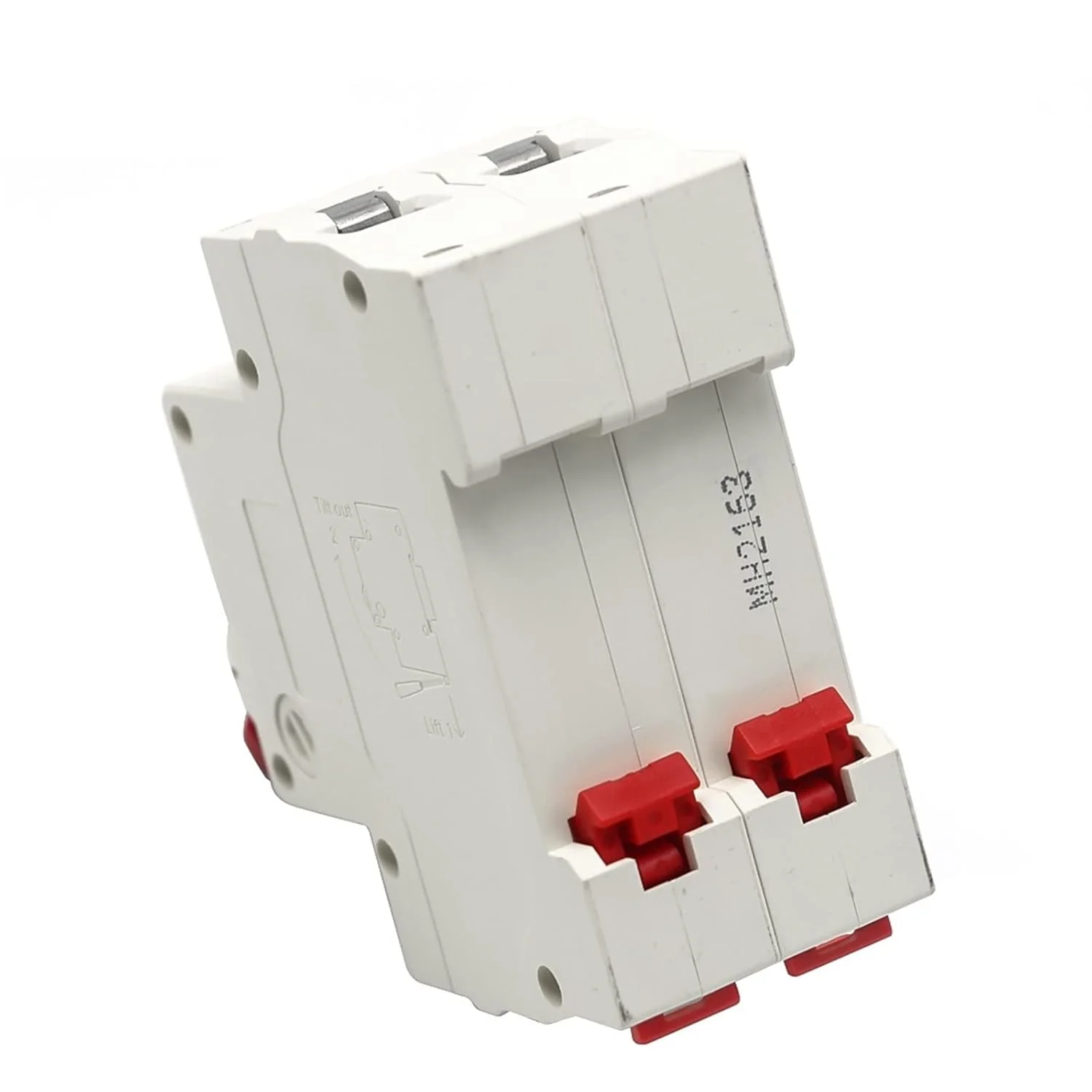

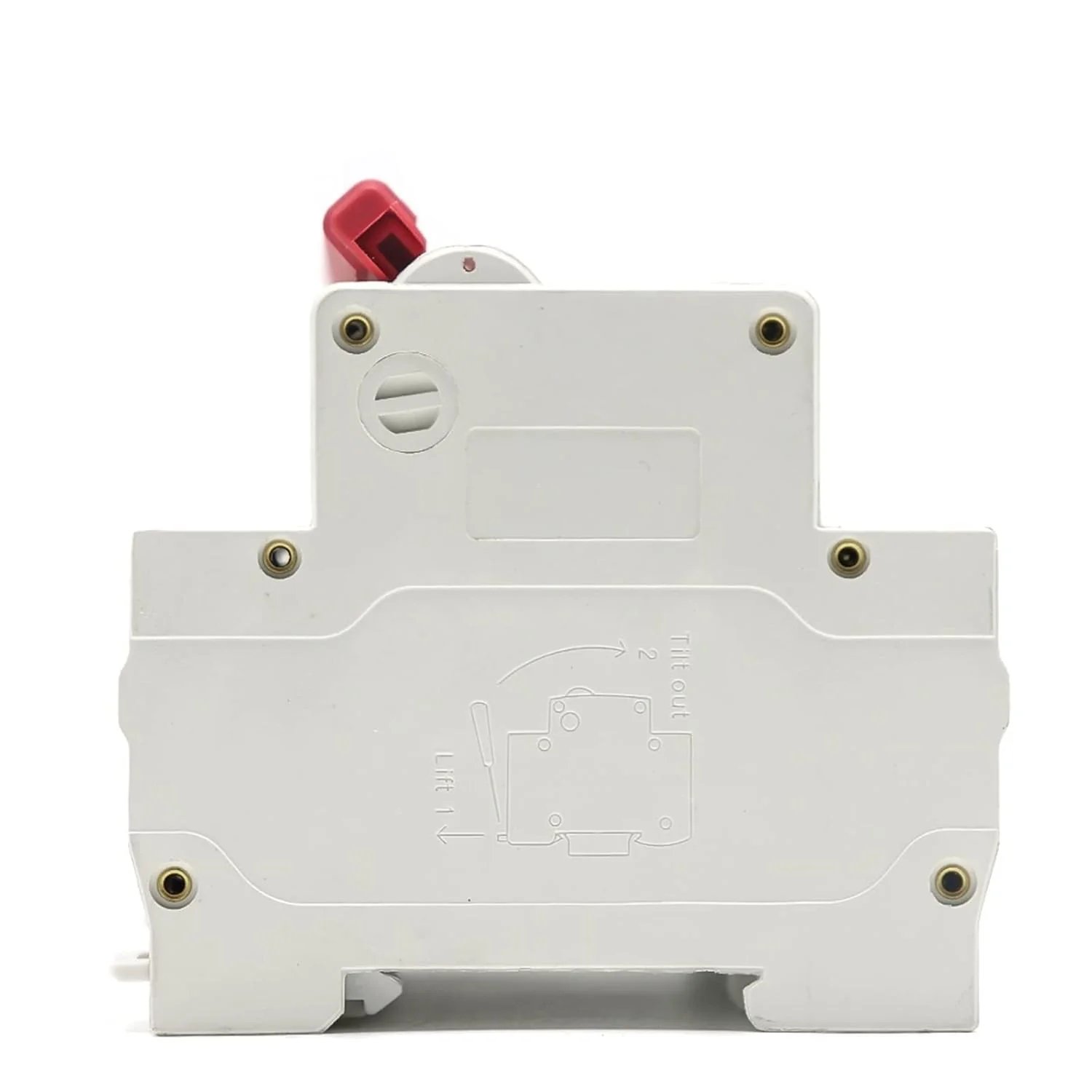

Solar DC Circuit Breaker 63A
DC Circuit Breaker – 2P, 1000V, 63A, 4500A Breaking Capacity
The DC Circuit Breaker EACBDC series is designed for high-performance overload and short-circuit protection in DC distribution systems. Rated for up to 40A and a maximum DC voltage of 1000V, this DC Circuit Breaker delivers safe, reliable, and efficient protection for electrical equipment across industrial, commercial, and residential applications.
Built with advanced thermoplastic housing and a compact ergonomic design, this DC Circuit Breaker ensures long-term durability and safety.
Features:
- Durable Housing: Thermoplastic housing makes the DC Circuit Breaker impact-resistant, recyclable, and self-extinguishing.
- Reliable Connection: Classic U-tunnel terminal design ensures solid and safe connections for the DC Circuit Breaker.
- Efficient Cooling: Original airflow channels reduce heat between adjacent DC Circuit Breaker units.

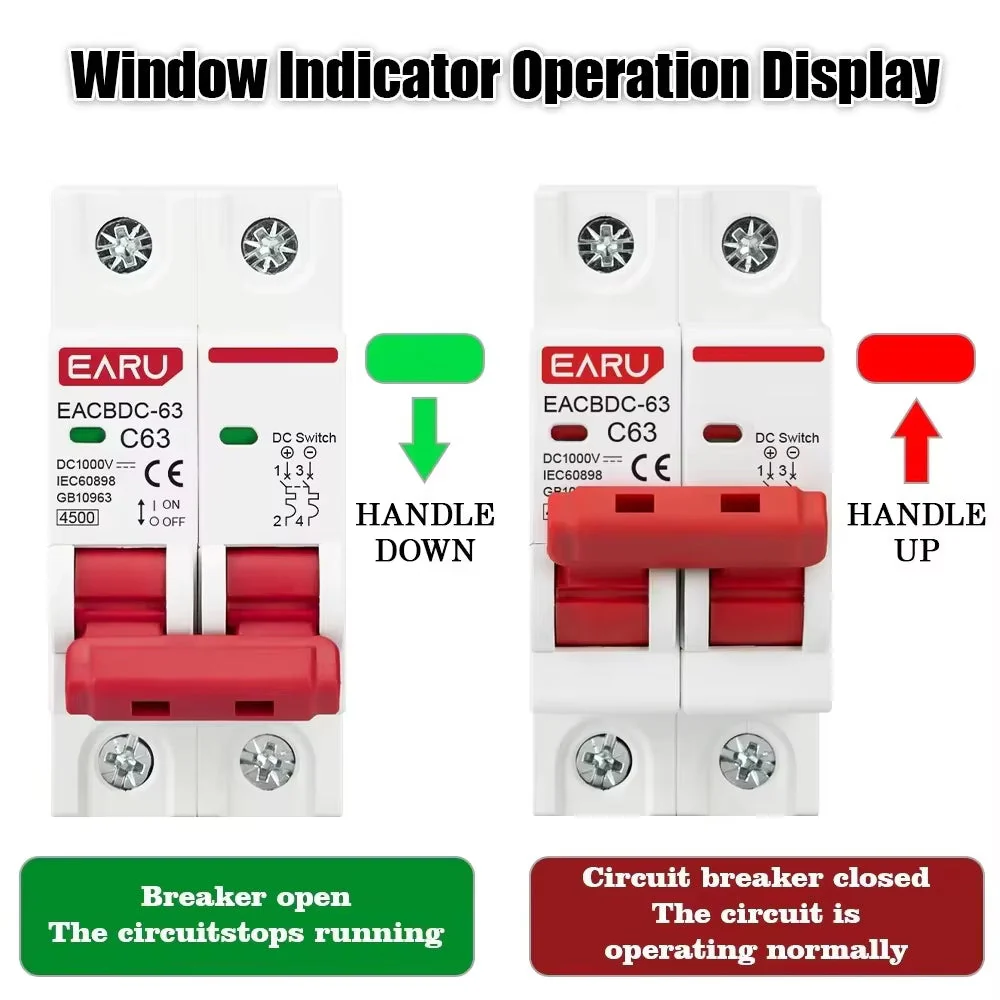

- Safety Handle: Ergonomic handle design enhances usability and security in the DC Circuit Breaker.
- High Performance: Rated at 1000V DC with up to 63A current capacity, the DC Circuit Breaker provides robust overload and short-circuit protection.
- Long Service Life: Electrical life ≥ 8000 cycles and mechanical life ≥ 20,000 cycles ensure durability of the DC Circuit Breaker.
- Standards Compliant: Fully meets IEC60898-1 and GB14048.2 safety standards for DC Circuit Breaker protection.
Application:
- Overload and short-circuit protection in DC distribution systems.
- Electrical equipment used in power enterprises, postal, traffic, mining, and other fields.
- Renewable energy systems such as solar PV, wind power, and off-grid installations that require a reliable DC Circuit Breaker.
- Commercial and residential protection with the highest-rated voltage in housing-grade DC Circuit Breaker products in China.
- Use in systems requiring strict adherence to IEC60898-1 and GB14048.2 safety standards.

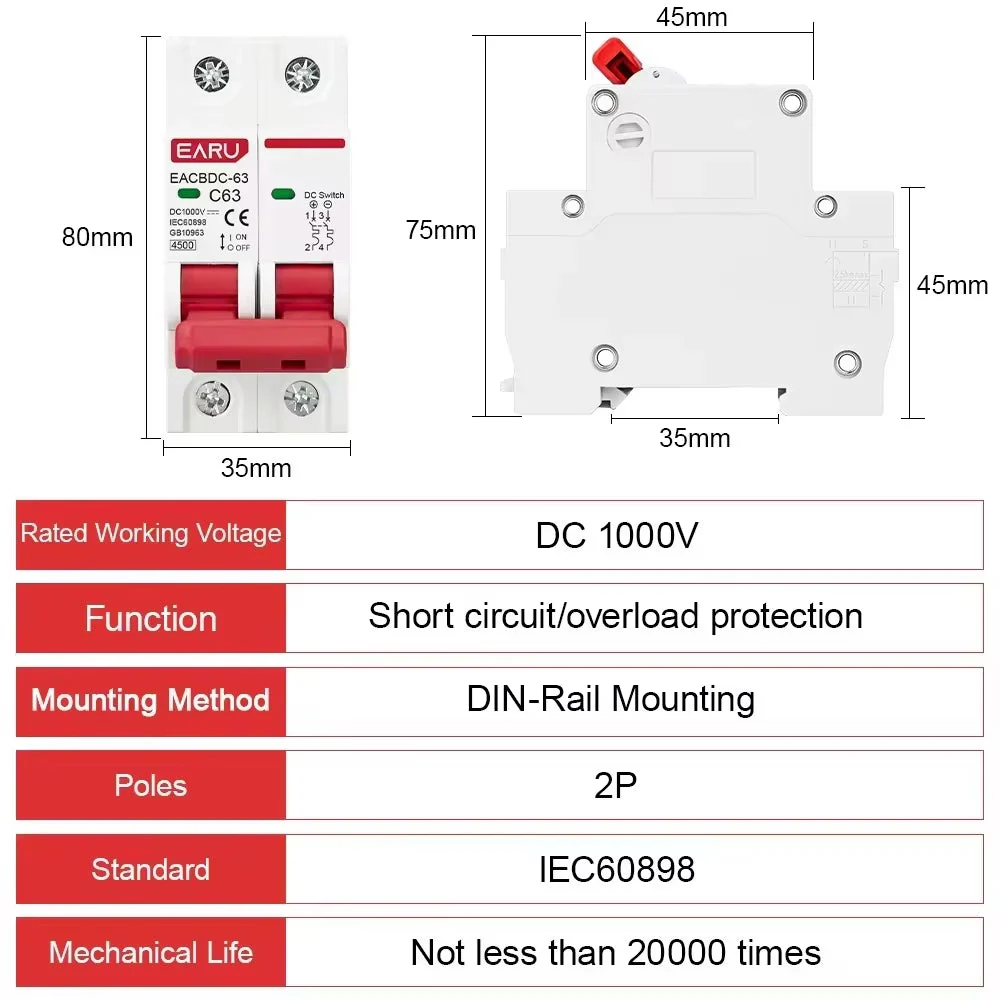

Specifications:
- Product: EACBDC Series
- Poles: 2P
- Rated Current: 63A
- Nominal Voltage: DC 1000V
- Breaking Capacity: 4500A
- Rated Breaking Capacity: 6.0 kA IEC60898 / 6,10,15A IEC60947-2
- Characteristic Curve: C Curve
- Max Fuse Support: 100AgL (>10kA)
- Electrical Life: ≥ 8000 times
- Mechanical Life: ≥ 20,000 times
- Selective Grade: 3
- Operating Temp Range: -10℃ to +40℃
Package Includes:
-
1 × DC Circuit Breaker
The DC Circuit Breaker offers superior overload and short-circuit protection with high voltage support (1000V) and up to 63A current rating. With exceptional durability, IP20 safety rating, and compliance to IEC/GB standards, this DC Circuit Breaker is the trusted solution for industrial, commercial, and renewable energy applications.
