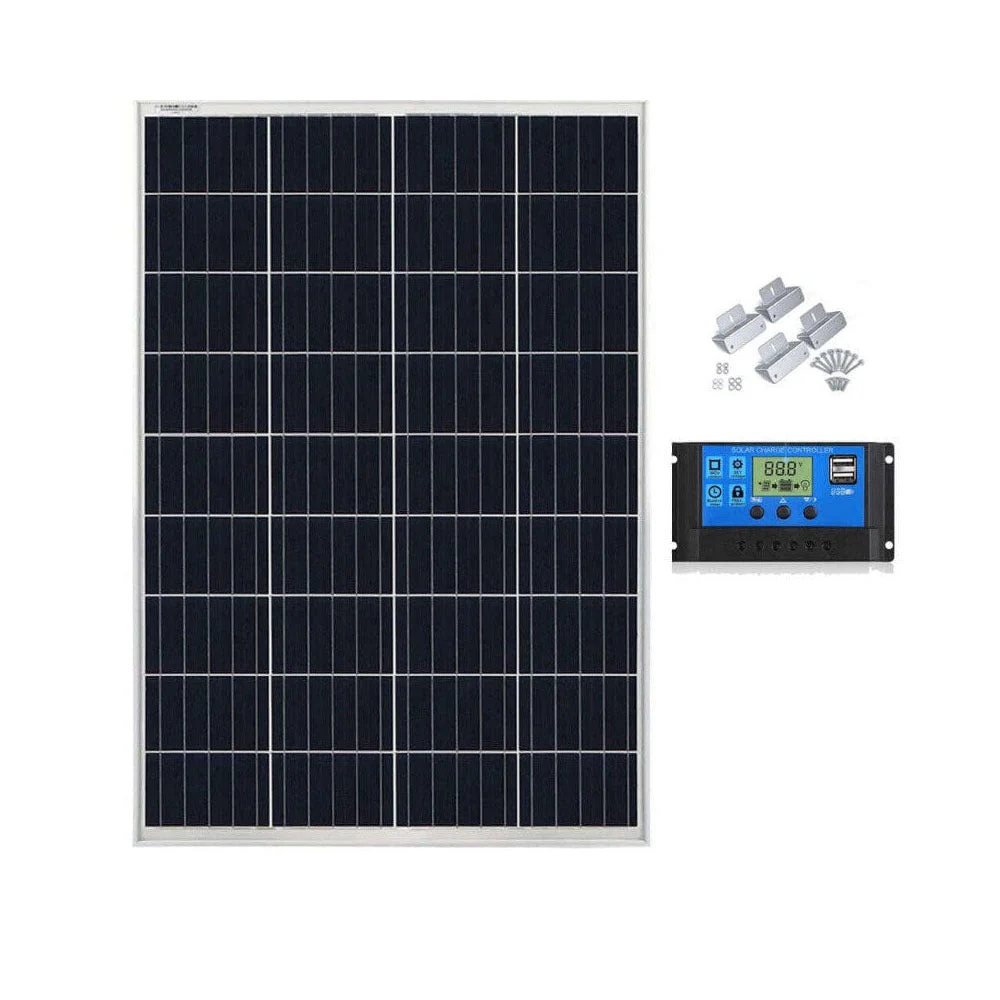

Solar Panel with controller 50w
50W Monocrystalline Solar PanelĀ Solar Panel with controller 50w
Product Overview:
The 50W Monocrystalline Solar Panel is designed for compact spaces, making it an excellent choice for various applications where efficiency and reliability are paramount.
Specifications for 50W Monocrystalline Solar Panel:
- Frame: Heavy-duty aluminum
- Waterproof Rating: IP65
- Glass Thickness: 3.2mm tempered glass
- Max Power (Pmax): 50W Ā± 3%
- Max Power Voltage (Vmp): 17.5V
- Max Power Current (Lmp): 2.85A
- Open Circuit Voltage (Voc): 21.6V
- Short Circuit Current (Isc): 3.23A
- Max System Voltage: 1000V
- Max Series Fuse: 10A
- Standard Test Conditions: E = 1000W/mĀ², Tc = 25Ā°C, AM 1.5
- Nominal Operating Cell Temperature (NOCT): 47Ā°C Ā± 2Ā°C
- Field Connections: Minimum No. 11 AWG copper wires
- Insulation: Minimum 90Ā°C
- Dimensions: 700 x 540 x 30 mm
- Weight: 4 kg
Packaging Includes:
- 1 x 50W High-Efficiency Monocrystalline Solar Panel
- 1 x 20A Solar Charge Controller
The 50W Monocrystalline Solar Panel is perfect for small solar setups, ensuring efficient power generation while maintaining a compact design. Ideal for off-grid applications and portable energy needs!
