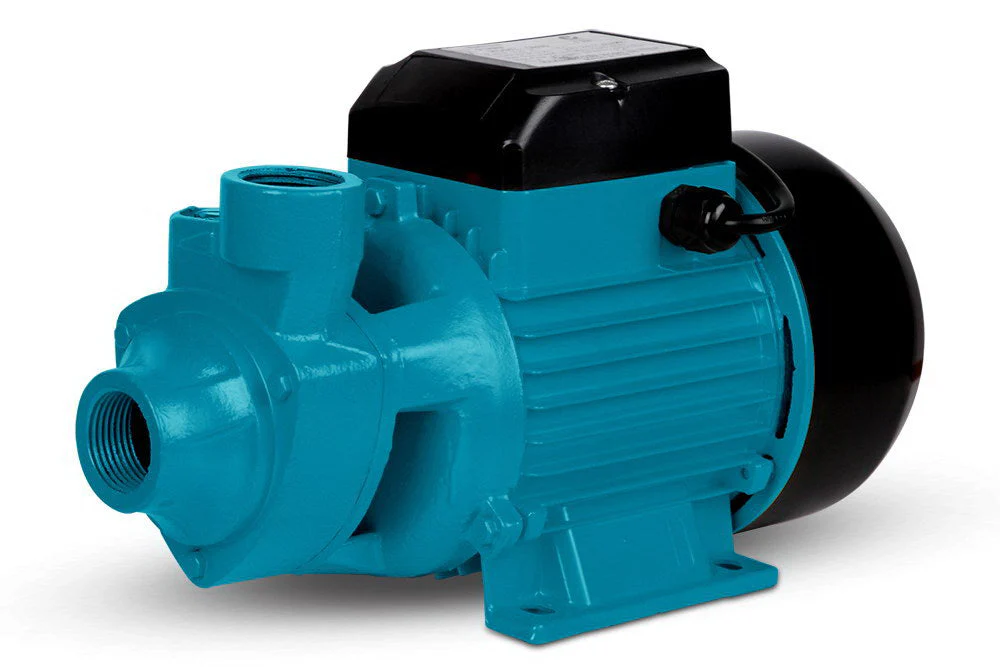

Water Pump for Clean Water QB60

Introducing the QB60 Clean Water Pump, a high-quality domestic peripheral water pump from the QB Series. This pump, equipped with a peripheral impeller, is designed to deliver high pressure with relatively low power consumption, featuring particularly stable operating curves.

The QB60 Pump is perfect for a variety of applications including pool pumping, increasing water pressure in pipes, garden sprinkling, irrigation, and cleaning. It boasts a reliable, rust-resistant brass impeller and a capacity of 35 liters per minute.

Application: For optimal performance, use the pump for clean water or non-aggressive liquids only, free from sand or other solid impurities. It is well-suited for domestic installations, enhancing system pressure in aqueducts, and facilitating automatic water distribution through pressure tanks and hydrosphere units.

Operating Conditions:

• Liquid temperature up to 60ºC
• Ambient temperature up to 40ºC
• Total suction lift up to 9m
• Continuous duty

Specification Details:

• Single Phase
• Heavy-Duty Continuous Work
• Motor Housing: Aluminum Alloy
• Shaft: Carbon Steel/Stainless Steel
• Insulation: Class B/Class F
• Protection: IP44/P54
• Cooling: External Ventilation (Air-cooled by a fan)
• Pump Body: Cast Iron (with Brass Insert if required)
• Impeller: Brass/Stainless Steel
• Mechanical Seal: SIC/Ceramic/Graphite
• Input max: 0.55kw
• Output power: 0.37kw/0.5HP
• Current: 2.5A
• Q max: 36L/m
• H max: 35m
• Inlet/Outlet: 25mm/1Inch

Package Includes: QB60 Clean Water Pump, User Manual, Warranty Card.

Enhance your water management system today with the reliable and efficient QB60 Clean Water Pump. Order now and experience superior performance and durability!
